AZM40 is the smallest electronic solenoid interlock in the world This makes it especially suitable for small safety doors and flaps Despite its compact size, the AZM40 has an amazing 2000 Newton interlocking force. Small construction form (WxHxD: 40 x 119.5 x 20 mm) Bistable principle of operation High holding force FZh = 2,000 N Latching force approx. 25 N Individually coded version with coding level "High" according to ISO 14119 Suitable for applications up to Cat. 4 / PL e / SIL 3

Position Switches

Connector M8 x 1, 4-pole Thermoplastic enclosure Small body Concealed mounting possible 26 mm x 36 mm x 13 mm Long life no mechanical wear Insensitive to transverse misalignment Insensitive to soiling

Safety switch with separate actuator Technopolymer housing

1 Cable entry M 20 x 1.5 IDC method of termination Manual release Thermoplastic enclosure Double-insulated Compact design 90 mm x 84 mm x 30 mm Interlock with protection against incorrect locking. Long life High holding force

Schmersal Saftey sensor Long life Small body no mechanical wear 26 mm x 36 mm x 13 mm Insensitive to soiling Thermoplastic enclosure Concealed mounting possible Insensitive to transverse misalignment

enclosure one-side operation / wire up to 75 m long Release push button Position indicato 3 cable entries M 20 x 1.5 Metal

2 Contacts Protective shield with wide opening Also available as safety foot switch Low operating height of pedal Cable entry M 20 x 1.5 High level of stability Metal enclosure single-pedal types

Connector M8 x 1, 4-pole Thermoplastic enclosure Small body Concealed mounting possible 26 mm x 36 mm x 13 mm Long life no mechanical wear Insensitive to transverse misalignment Insensitive to soiling

2 contacts Snap action, change-over contact with double break, positive break A Slow action, change over with double break, positive break A Galvanically separated contact bridges Screw terminal

MODEL- EOS2 Automatic Start/Restart. Two safety PNP static outputs, auto-controlled. All connections and configurations through M12 5-pole connectors. Unshielded cables up to 100 meter long. Start/Restart interlock and EDM through external AD SR1 interface. Muting function through external AD SRM interface. Autotest every 0.5 sec.

Family -Metron Height of controlled Area - 145 mm Beam Spacing- 5 mm Number of Beam- 30 Operating Range- Upto 2 M Over All Height- 261 mm

MODEL- EOS2 Automatic Start/Restart. Two safety PNP static outputs, auto-controlled. All connections and configurations through M12 5-pole connectors. Unshielded cables up to 100 meter long. Start/Restart interlock and EDM through external AD SR1 interface. Muting function through external AD SRM interface. Autotest every 0.5 sec.

Protection degree up to IP67 and IP69K. Continuous sound and pulsed sound versions High sound intensity 12 VAC/DC or 24 VAC/DC versions CE, cULus, and EAC quality marks

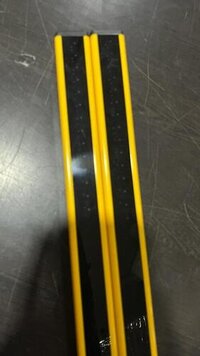

Safety level Type 2 - PL c Protected height (mm) 260 Resolution (mm) 30

Safety level Type 2 - PL c Protected height (mm) 310 Resolution (mm) 30

Safety level Type 2 - PL c Protected height (mm) 460 Resolution (mm) 30

Safety level Type 2 - PL c Protected height (mm) 610 Resolution (mm) 30

Safety level Type 2 - PL c Protected height (mm) 760 Resolution (mm) 30
